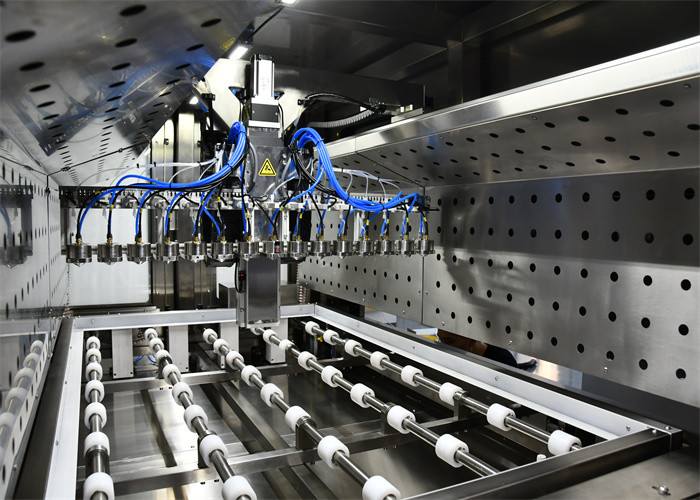

New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying with 110Khz Conemist Nozzle
Description:
Ultrasonic spraying technology has a wide range of applications in the preparation of perovskite solar cells. Perovskite solar cells are a new type of high-efficiency solar cell, and their active layer is usually composed of perovskite materials.
Ultrasonic atomization equipment is mainly used in industries such as fuel cells, thin-film photovoltaic cells, thin-film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coatings, biomedicine, food processing, textiles and non-woven fabrics, microelectronics and semiconductors. The nozzle can be used for various liquids, even sewage, chemical liquids, and low viscosity oil and viscous liquids can be atomized and sprayed.
Parameters:
| Product Type | Perovskite Batteries Ultrasonic Spray Coating FS2000 |
| Spray Nozzle Operating Frequency | 110KHz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | Determine based on the type and quantity of nozzles configured |
| Effective Spraying Width | Determine based on the type and quantity of nozzles configured |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Solution Viscosity | ≤130cps |
| Temperature Range | -10-60℃ |
| Diversion Pressure Max | ≤0.15MPA |
| Material of the contact solution part | SUS304, Titanium, PTFE |
| Exercise Mode | A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Bottom glass conveyor belt |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision self pumping and constant flow injection pump |
The benefits of ultrasonic nozzle spraying fuel cell catalyst slurry:
1. The membrane electrode manufacturing has a very high platinum utilization rate of up to 90%.
2. The porous coating has high strength to prevent cracking or peeling of the catalyst layer.
3. Avoid excessive spraying, save expensive catalyst slurry, and reduce material consumption by up to 50%.
4. Accurate spray pattern, easy to shape, suitable for various applications.
5. Highly controllable atomizing spray with high product consistency.
6. There is no blocking atomizing spray, and there is no deviation.
7. It can perform ultra-low flow spraying and can work intermittently or continuously.
8. Ultrasonic vibration can continuously disperse and mix solid particles.
9. Able to coat proton exchange membranes with very little slurry
10. Outstanding catalyst coating adhesion, suitable for high vibration fuel cell applications such as automotive components.
