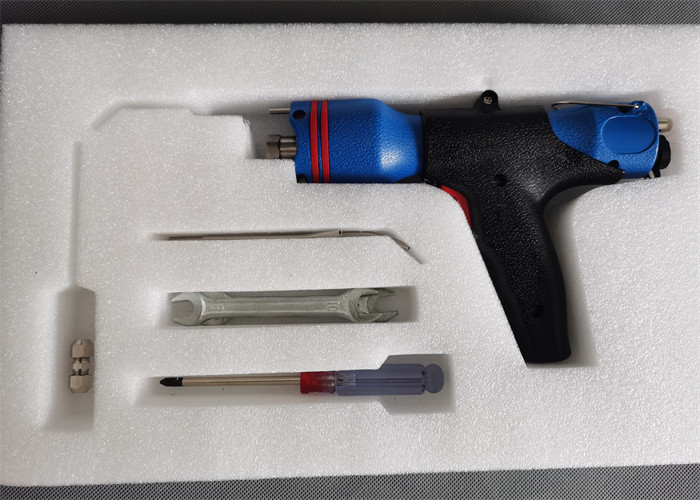

35Khz Ultrasonic Gun and Cylinder Integrated Spot Welder
Description:
35k ultrasonic spot welding system is mainly suitable for ABS, PP, PE, PC, PUC, PMMA, PS, PPS, PBT, PETG and other plastics; suitable for spot welding, pressure welding, riveting, diamond setting, border flower, dot marking , Sealing, screw embedding, decal welding and other processes; also used in plastics, electronics, electrical appliances, auto parts, packaging, environmental protection, medical treatment, non-woven clothing, stationery, daily necessities, plastic toys, sporting goods, communication equipment, and fecal removal Belt, bumper, sound insulation cotton, waterproof board, mask non-woven fabric, film, pen box, fishing rod box and other industries.
Specifications:
| Item No | QR-W35AY |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 35KHZ |
| Voltage | 220V or 110V |
| welding head | Aluminum or Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type |
Frequency
(Khz) | 35 | 28 | 28 | 28 | 20 | 28 | 28 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — |
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC,
PSU,PA |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding |
Characteristics:
1. Novel portable structure design, quick and convenient operation and movement
2. Hand-held operation, flexible and practical
3. Fully automatic tracking system, no need to manually tune the frequency
4. Unique value design, compact and light, suitable for operation
5. Strong power, up to 1200 watts, can work continuously or pulsed, especially suitable for the diameter of 1-15mm and melting point.
6. Equipped with ultra-resistant folding cable
35Khz Ultrasonic Gun and Cylinder Integrated Spot Welder
